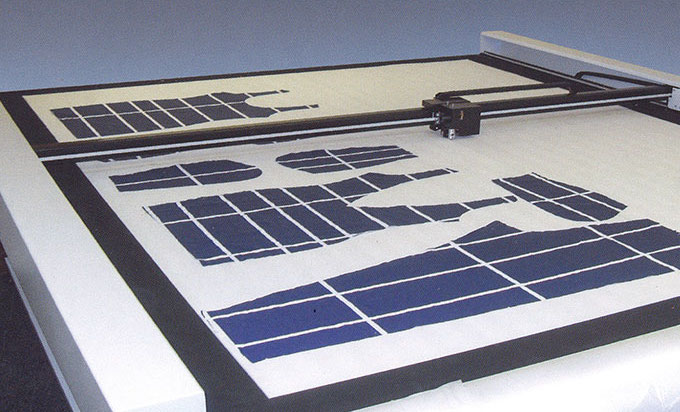

If you are in the market for a new automatic cutter, we offer you the crème de la crème. State of the Art and lightning fast —– Morgan Tecnica Cutters. Engineered for material flexibility, reliability and cost effectiveness,
our equipment will give you the quick return on investment which your business demands. With a truly “Made in Italy” design, Morgan Tecnica has positioned itself with having superior Italian quality, ingenuity and integrity that one
would expect. This line comes with heavy endorsement as its main operating partner is none other than CANALI of Italy, world renowned leader in classic menswear. From single ply to high ply, Morgan delivers the highest performance
in terms of productivity, cut quality and ease of use; together with a strong competitive price and one of the lowest maintenance costs in the market. Compatible with all textile CAD systems including PAD System, Gerber, Lectra, Investrionic
and Optitex.
Precise, swift and accurate from a choice of two tool stations: Round Blade with an optional Punch Tool or alternatively an Oscillating Head.
TECHNICAL SPECIFICATIONS:
Speed: 56cm/s (40cm/s on axis)
Input Voltage: 100-260 VAC @ 50-60HZ
Accuracy: 0.1%, user calibration
Operating temp: 0-40 degree (32-104F)
From natural woven fibers to technical textile and composites, apparel to upholstery, from the automotive to the graphic industry, Ply1 is the solution that meets all these needs and many more. Thanks to a new generation of linear motors, Ply 1 can reach speeds and accelerations that make it the fastest in its category. High performance, maximum precision, minimal maintenance, modern design and innovative software are the distinctive features of Morgan Ply 1.
TECHNICAL SPECIFICATIONS:
Power plants: 4.5 + 9/15 kW
Average power consumption: 3.5 kW
Acceleration: up to 3G
Speed: up to 180 m/min
Standard cutting window: 250 cm x 180 cm
Humidity: from 30% to 80% without condense
Voltage:
400V 3Ph 50/60Hz.
