Automatic Cutters, NEXT 2 PRO Series

Morgan's professional cutting line, designed for an enhanced focus on specific cutting applications. The Morgan Next 2 Pro series is the first series with Artificial Intelligence that allows the best self-handling of processes such as sharpening cycles and real time speed control. This technology guarantees the highest quality cutting combined with maximum productivity low running costs. The Pro series is also able to self detect (Auto-diagnosis system) all the operating anomalies, drastically reducing breaks and machine stops.

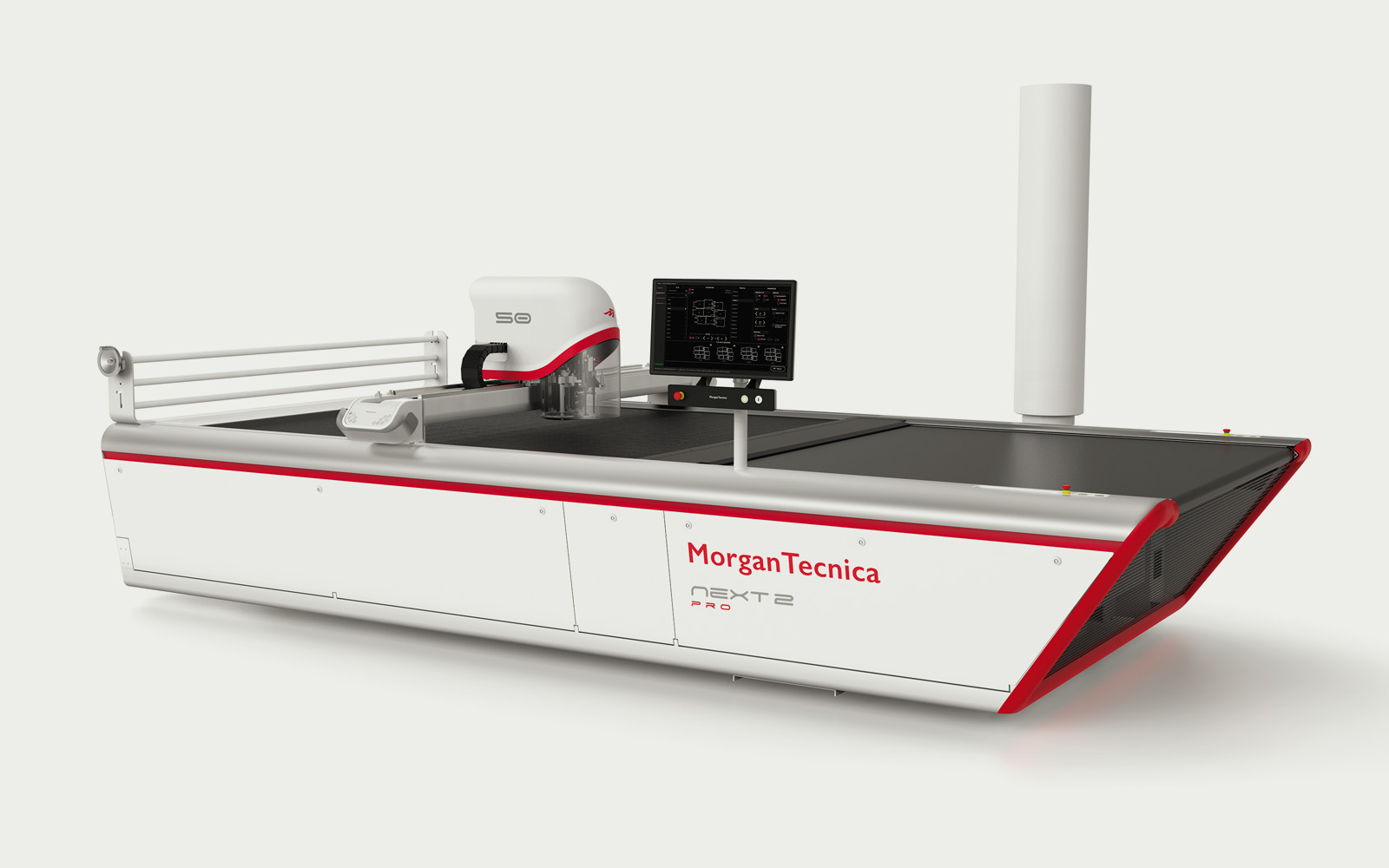

NEXT 2 PRO

50

Single and low ply cutting

Next 2 Pro 50 LINGERIE is Morgan’s newest high-ply cutting machine, specificly designed for the production of LINGERIE. This version has been expressly designed to guarantee maximum speed and reliability in the production of materials and patterns typical of LINGERIE production.

This model utilizes a reduced blade thickness of (2mm X 7mm), to guarantee maximum precision. Design, speed and A.I. were the essential attributes in mind when designing a machine that was created to think in the future. Thanks to the abundant implementation of sensors and sophisticated algorithms, Morgan Next 2 Pro LINGERIE is the first machine with Artificial Intelligence that allows for the best self-handling of processes, such as sharpening cycles and real time speed control.

TECHNICAL SPECIFICATIONS:

Max cutting thickness 5 cm compressed
Power plants 10 kW + 37 kW
Average power consumption approx. 22 kW
Standard cutting window 180 cm
Available width 180 – 220 cm
Standard 6000rpm
Environment temperature from 10° to 40° C
Humidity from 30% to 80% without condensation
Voltage 400 V 3Ph 50/60 Hz.Blade 2mm X 7 mm.

View PDF Spec SheetRequest a Quote

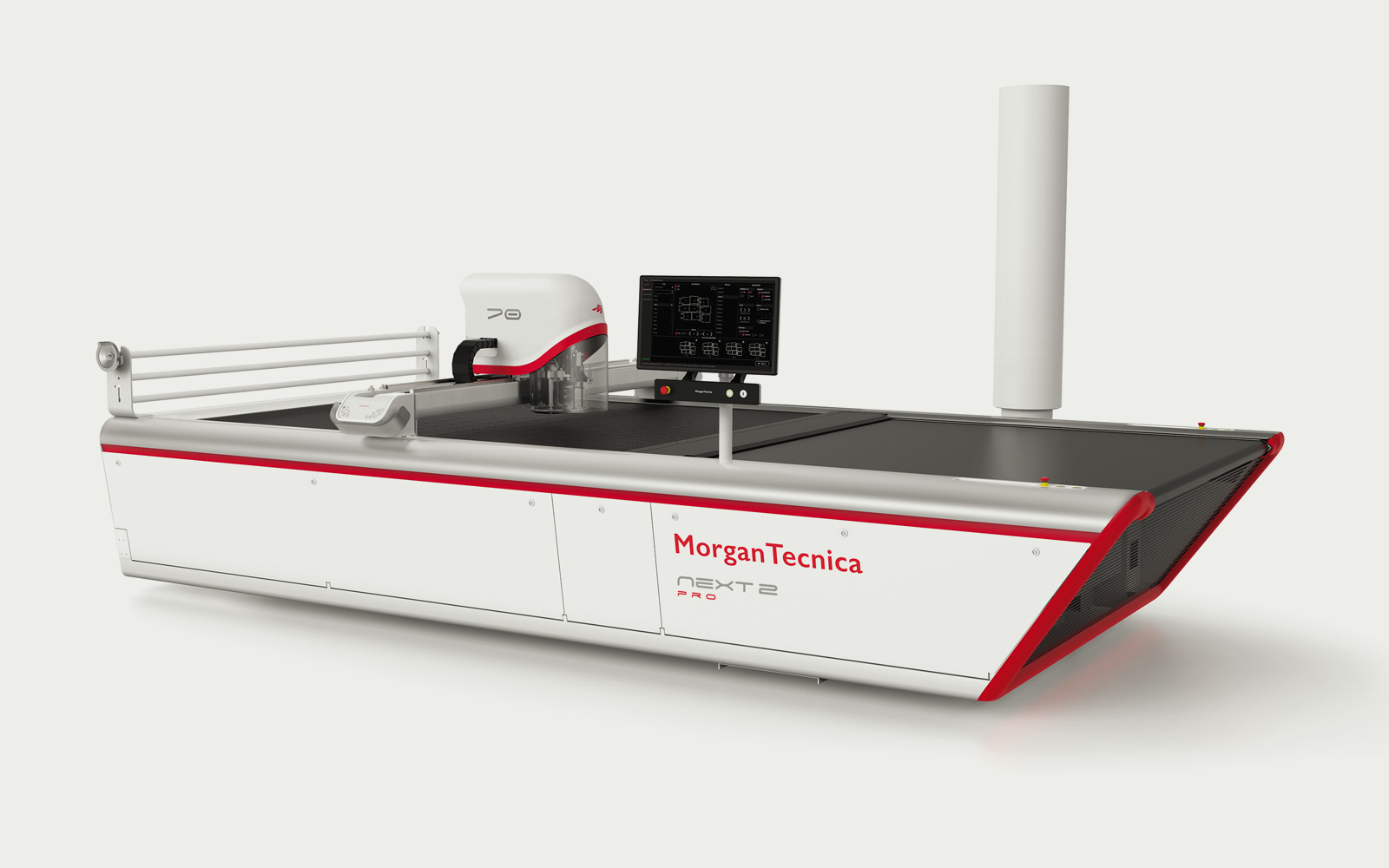

NEXT 2 PRO

70

Medium ply cutting

Next 2 Pro 70 DENIM is a version of Morgan’s newest high-ply cutting machine, now specificly designed for the production of jean-based material. This version has been expressly designed to guarantee maximum reliability both in terms of strength and performance in the production of jean material, as well as materials of similer thickness and density. This model introduces several mechanical devices for strengthening the head and the plate, and uses a blade with increased thickness (3mm).

TECHNICAL SPECIFICATIONS:

Max cutting thickness 7 cm compressed
Power plants 10 kW + 18,5 kW
Average power consumption approx. 22 kW
Standard cutting window 180 cm
Available width 180 – 220 cm
Standard 4000rpm
Environment temperature from 10° to 40° C
Humidity from 30% to 80% without condensation
Voltage 400 V 3Ph 50/60 Hz.
Blade 3mm X 9,3 mm.

View PDF Spec SheetRequest a Quote

NEXT 2 PRO

90

Medium ply cutting

The most developed version of our newest, high-ply cutting machine. Next 2 Pro 90 is the answer to all cutting room production needs. From apparel to furnishing, from automotive to accessories manufacturing, this machine is capable of meeting all demands.

Simply, it is the most robust version of our line of cutting machines. This machine should be utilized if your fabric/material requirements are both diverse and extensive. The Pro 90 shares the abundant implementation of sensors and sophisticated algorithms of its sister machines.

TECHNICAL SPECIFICATIONS:

Max cutting thickness: 9 cm compressed (Next 2 PRO 90)
Power plants 10 kW + 37 kW
Average power consumption approx. 22 kW
Standard cutting window 180 cm
Available width 180 – 220 cm
Environment temperature from 10° to 40° C
Humidity from 30% to 80% without condensation
Voltage 400 V 3Ph 50/60 Hz
Blowing System Power 37 kW
Performance V axes 6000 rpm.

View PDF Spec SheetRequest a Quote
