Automatic Cutters, NEXT 2 ES Series

Morgan's standard low to high-ply cutting line range.

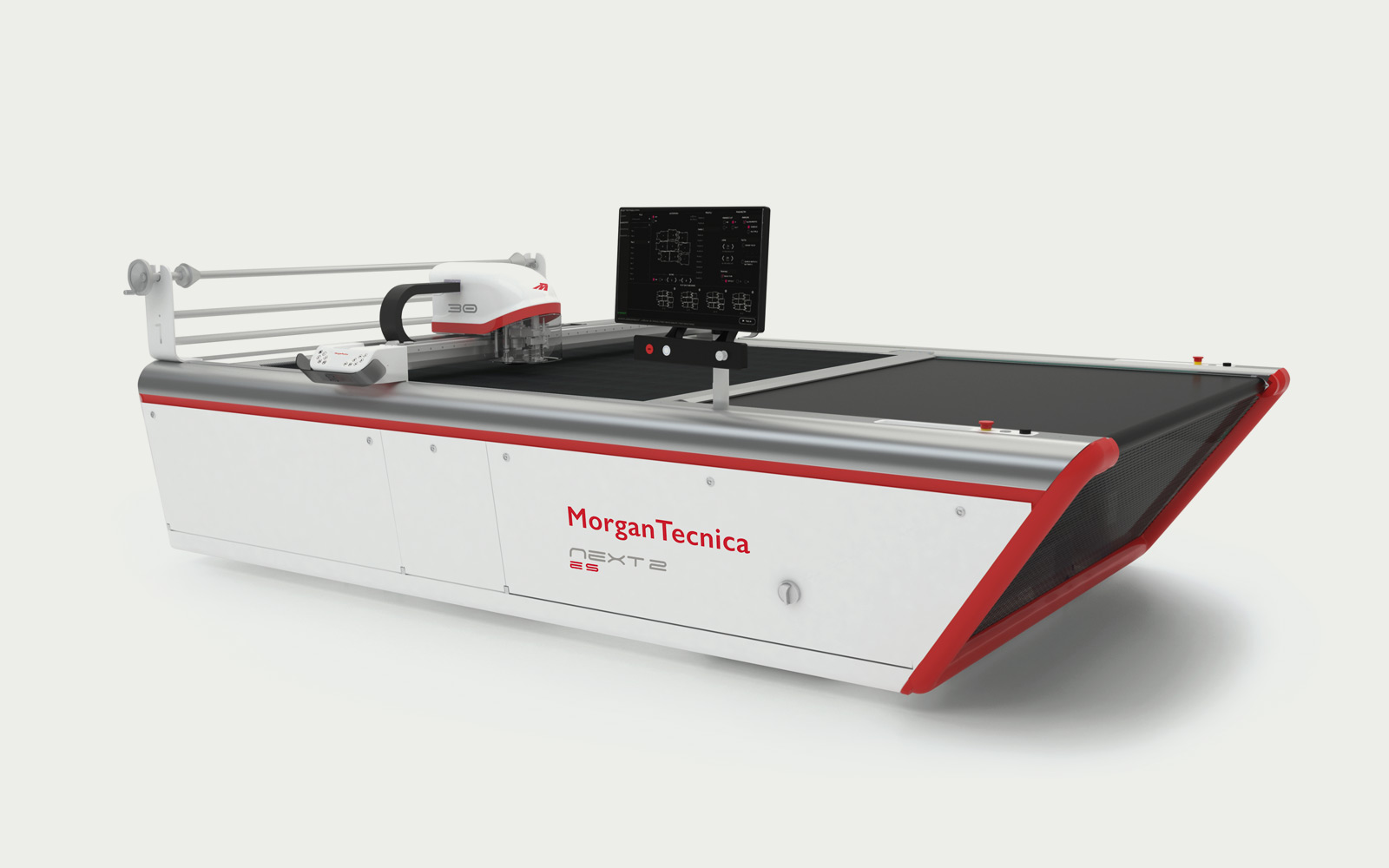

NEXT 2 ES

30

Single and Low Ply Cutting

The fastest of Morgan's new low-ply cutting machine. Cut any thickness of lay and composition: from single ply up to 3.0 cm compressed, utilizing any kind of material. From elastic to hard materials, the Next 2 ES offers continuous cutting, zero buffer, speed and maximum precision. Extremely productive, drastically reducing manpower and operating costs.

Control all functions through the latest generation digital technology, guaranteeing maximum performance together with low power consumption. Has the ability to set different cutting profiles in order to ensure a rapid flow of work processes.

TECHNICAL SPECIFICATIONS:

Max cutting thickness 3 cm compressed
Power plants 6 kW + 18,5 kW
Average power consumption approx. 10 kW
Standard cutting window 180 cm
Available width 180 – 220 cm
Standard 4800 rpm
Environment temperature from 10° to 40° C
Humidity from 30% to 80% without condensation

View PDF Spec SheetRequest Quote

NEXT 2 ES

50

Medium Ply Cutting

A multi-purpose cutting machine for all the cutting room production needs, from clothing to furnishings, from automotive accessories. Next 2 ES is able to cut non-stop lays of any material. Utilizing a cutting edge automatic system, it digitally controls knife bending in real time, guaranteeing maximum cutting precision.

Offering the possibility to set multiple different profiles, this allows cutting from single ply up to medium ply lays of 5cm of compressed material while maintaining the same level of high performance.

TECHNICAL SPECIFICATIONS:

Max cutting thickness: 5 cm compressed
Power plants 10 kW + 18,5 kW
Average power consumption approx. 22 kW
Standard cutting window 180 cm
Available width 180 – 220 cm
Environment temperature from 10° to 40° C
Humidity from 30% to 80% without condensation
Voltage 400 V 3Ph 50/60 Hz.
Blowing System Power 18,5 kW
Performance V axes 4000 rpm.

View PDF Spec SheetRequest Quote

NEXT 2 ES

70

High Ply Cutting

The newest multi-purpose cutting machine, further improving on the ES 50 model. The Next 2 ES series is able to cut non-stop lays of any material. Utilizing a cutting edge automatic system, it digitally controls knife bending in real time, guaranteeing maximum cutting precision.

Offering the possibility to set multiple different profiles, it allows cutting from single ply up to high ply lays of 7cm of compressed material, while maintaining the same level of high performance.

TECHNICAL SPECIFICATIONS:

Max cutting thickness: 7 cm compressed
Power plants 10 kW + 18,5 kW
Average power consumption approx. 22 kW
Standard cutting window 180 cm
Available width 180 – 220 cm
Environment temperature from 10° to 40° C
Humidity from 30% to 80% without condensation
Voltage 400 V 3Ph 50/60 Hz.
Blowing System Power 18,5 kW
Performance V axes 4000 rpm.

View PDF Spec SheetRequest Quote
